Dynamic Design Examples

Intended for Power Distribution Center for space-craft electronics. This cable distributes the power supply to three different platforms within the electronic enclosure. Power supply facilitated a cooler motor, the Digital Electronics board, and Analog Electronics, all located with in the same electronics enclosure

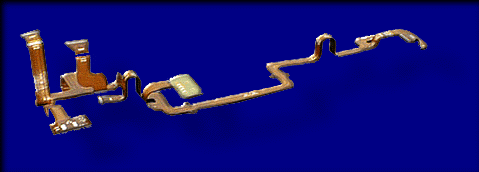

6 Layer power distributions flex. Capacity 30 Amp Continuous, 3 and 4 Ounce copper Multi-layer. 23 inch long IR drop less than 50 milliamp, Bifurcated terminals installed for wire wrap, Shielded top and bottom for isolation to adjacent units
