Dynamic Design Examples
Required for a recorder used
in map generation. We had no intelligent data base to start with,
only film. It was scanned, Gerber data created, net list extracted, and
re-wired to facilitate the extension flex add-on. Complete design and documentation supplied to complete the
mission of cable fabrication.
RETURN |

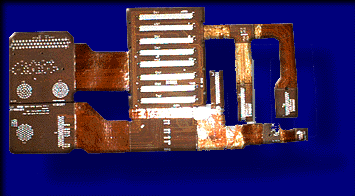

| 14 Layer Rigid
Flex re-design
All Polyimide
construction. Rigid & Flex
DFM efforts placed
a minimum space and trace width of .012 inches.
Plated through pad
size finished at .030 diameter with a .010 finish hole.
Connector Density
on surface mount areas required .050 pitch on surface mount lands
18 I/O areas
merged in one substrate created from approximately 1500 connections
|
|
