Dynamic Design Examples

Raytheon Systems Corp.

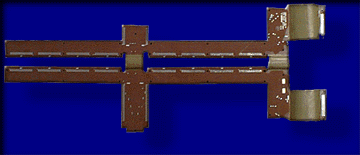

This board is used as a power distribution center in a Submarine, weaponry, Applications. Specifics assume proprietary status on this part, we don’t know too much about this one, and can only disclose limited information.

14 Layer Rigid Flex Design, 24 I/O areas from approximately 2500 connections, Pads only on the outer layers – eliminates solder mask requirements, 2 ounce and 1 ounce copper mixed to meet current requirements


100 Amp requirement met in flat conductor construction, Size is over 22 inches long, Book binder construction eliminated electrical failure during flexing operations, proven design technique for stringent bend requirements.
